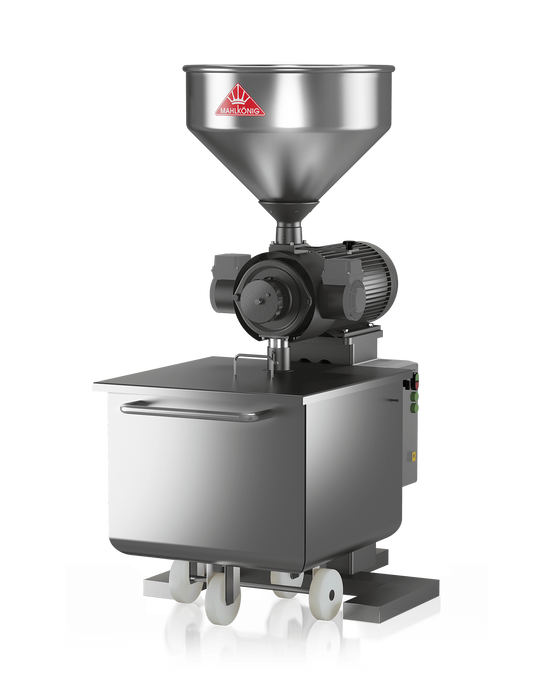

DK27 Industrial Coffee Grinder

DK27

Industrial Grinder

OUTSTANDING GRIND QUALITY

The DK27 levels up the capacity of your premium pre-ground coffee production to a range of 230kg to 300kg per hour. This industrial unit is also suitable for continuous operation making it perfect for automated production lines.

Find Your Distributor
Shop Spare Parts

We cooperate with sales and service partners in more than 90 countries around the globe. Find the distributor that is closest to you and get into contact.

MORE INFORMATION

Features Technical Details Downloads
  • Outstanding even grinding quality
  • Wear-resistant premium burrs
  • Very powerful three-phase motors with surface cooling and high starting torque - suitable for continuous operation
  • Two additional fans to cool the motor
  • Motor and grinder casing ventilation
  • Overload protection
  • Service-free, constantly greased bearings
  • Stepless grind adjustment
  • Ground material container (capacity 200 l)
  • Bean hopper magnet

Voltage // frequencies // phases:

  • 380-415 V // 50/60 Hz // 3~
  • 208-220 V // 50/60 Hz // 3~

Idle speed: 980 rpm (50 Hz); 1160 rpm (60 Hz)

Burr diameter: 180 mm

Burr material:

DK27 LVS, DK27 LVST:

  • Fully hardened special steel
  • Grind Life (median setting): ca. 10-15 tons

DK27 LV, DK27 LVT, DP27 LV:

  • Fully hardened cast steel
  • Grind Life (median setting): ca. 15-20 tons

DK27 LVHT, DK27 LVH:

  • Tungsten Carbide
  • Grind Life (median setting): ca. 35-40 tons

Grinding capacity - fine* kg/h (approx.):

  • 230 (DK27 LV, DP27 LV)
  • 260 (DK27 LVH)
  • 280 (DK27 LVS)

Grinding capacity - medium* kg/h (approx.):

  • 250 (DK27 LV, DP27 LV)
  • 280 (DK27 LVH)
  • 300 (DK27 LVS)

Grinding capacity - turkish* kg/h (approx.):

  • 170 (DK27 LVT)
  • 180 (DK27 LVST)
  • 220 (DK27 LVHT)

Bean hopper capacity: approx. 30 kg

Max. nominal power: 5500 W

Dimensions (w x h x d):

  • 79 x 160 x 123 cm (incl. base)
  • 69 x 70 x 79 cm l 200 l (container)

Dimensions of packing (w x h x d): Depends on individual version and equipment

Net weight:

  • 155 kg (incl. base) (DK27 LV, DK27 LVS, DK27 LVT, DK27 LVST, DP27 LV)
  • 158 kg (incl. base) (DK27 LVH, DK27 LVHT)

Gross weight: Depends on individual version and equipment

Standard colors:

  • Textured, reddish grey

Special equipment:

  • Burrs for grains or for other grinding goods, espresso or turkish
  • Pre-breaker for increased grind speeds
  • Additional ventilation
  • Electro-pneumatic gate for a controlled supply of material

Legend:

  • DK27 LV (Cast steel for coffee)
  • DK27 LVS (Steel for coffee)
  • DK27 LVH (Tungsten Carbide for coffee)
  • DK27 LVT (Cast steel for turkish)
  • DK27 LVST (Steel for turkish)
  • DK27 LVHT (Tungsten Carbide for turkish)
  • DP27 LV (Cast Steel for spices and pepper)



*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.

Features
  • Outstanding even grinding quality
  • Wear-resistant premium burrs
  • Very powerful three-phase motors with surface cooling and high starting torque - suitable for continuous operation
  • Two additional fans to cool the motor
  • Motor and grinder casing ventilation
  • Overload protection
  • Service-free, constantly greased bearings
  • Stepless grind adjustment
  • Ground material container (capacity 200 l)
  • Bean hopper magnet
Technical Details

Voltage // frequencies // phases:

  • 380-415 V // 50/60 Hz // 3~
  • 208-220 V // 50/60 Hz // 3~

Idle speed: 980 rpm (50 Hz); 1160 rpm (60 Hz)

Burr diameter: 180 mm

Burr material:

DK27 LVS, DK27 LVST:

  • Fully hardened special steel
  • Grind Life (median setting): ca. 10-15 tons

DK27 LV, DK27 LVT, DP27 LV:

  • Fully hardened cast steel
  • Grind Life (median setting): ca. 15-20 tons

DK27 LVHT, DK27 LVH:

  • Tungsten Carbide
  • Grind Life (median setting): ca. 35-40 tons

Grinding capacity - fine* kg/h (approx.):

  • 230 (DK27 LV, DP27 LV)
  • 260 (DK27 LVH)
  • 280 (DK27 LVS)

Grinding capacity - medium* kg/h (approx.):

  • 250 (DK27 LV, DP27 LV)
  • 280 (DK27 LVH)
  • 300 (DK27 LVS)

Grinding capacity - turkish* kg/h (approx.):

  • 170 (DK27 LVT)
  • 180 (DK27 LVST)
  • 220 (DK27 LVHT)

Bean hopper capacity: approx. 30 kg

Max. nominal power: 5500 W

Dimensions (w x h x d):

  • 79 x 160 x 123 cm (incl. base)
  • 69 x 70 x 79 cm l 200 l (container)

Dimensions of packing (w x h x d): Depends on individual version and equipment

Net weight:

  • 155 kg (incl. base) (DK27 LV, DK27 LVS, DK27 LVT, DK27 LVST, DP27 LV)
  • 158 kg (incl. base) (DK27 LVH, DK27 LVHT)

Gross weight: Depends on individual version and equipment

Standard colors:

  • Textured, reddish grey

Special equipment:

  • Burrs for grains or for other grinding goods, espresso or turkish
  • Pre-breaker for increased grind speeds
  • Additional ventilation
  • Electro-pneumatic gate for a controlled supply of material

Legend:

  • DK27 LV (Cast steel for coffee)
  • DK27 LVS (Steel for coffee)
  • DK27 LVH (Tungsten Carbide for coffee)
  • DK27 LVT (Cast steel for turkish)
  • DK27 LVST (Steel for turkish)
  • DK27 LVHT (Tungsten Carbide for turkish)
  • DP27 LV (Cast Steel for spices and pepper)



*Depends on the grinding goods and the chosen degree of fineness.
All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.

Downloads

Wear-Resistant Premium Burrs

Available burr materials include special steel, cast steel, and tungsten carbide for coffee, turkish, spices and peppers.

Very Powerful Three-Phase Motor

With two additional fans to cool the motor, high starting torque, motor and grinder casing ventilation, and overload protection - suitable for continuous operation.
